德国进口埃莎ERSA在线高精度汽车电子军工医疗选择性波峰焊 VERSAFLOW4/55
型号: VERSAFLOW 4/45
净重: 1100KG
保修期: 12个月
品牌: ERSA
机器尺寸: 26000*1700*1600
Cylce Time: 2 – 100 mm/sec
PCB尺寸: 63.5 – 406 mm(可选:508 mm)
功率: 最大 18 kW(基本配置)
电压: 5线制,3 x 25 30/400 V
双轨选项: 单轨/双轨
解析精度: 0.15mm
氮气选项: 空气/氮气
产品详情

库尔特埃莎亚洲有限公司和库尔特机电设备(上海)有限公司,是德国库尔特埃莎集团在亚太区的分销和技术服务机构,现有员工过百人,主要从事德国埃莎焊接设备和焊接工具,德国库尔特塑料成型设备,德国库尔特铸造设备的销售和技术服务工作。成立于1779年的库尔特集团已有240年的悠久历史,始终坚持以品质和创新引领行业发展的企业理念。进入中国20年来,库尔特埃莎在中国取得了巨大的成功,其中埃莎已是全球大型,全面的电子装配焊接设备和工具供应商。德国埃莎在中国,已成为华为,中兴,富士康,广达,比亚迪,博世,大陆汽车,法雷奥,德尔福,德赛和西门子等1000多家客户中焊接设备的主要供应商之一。2016以来公司连续获得华为的设备供应商奖项。德国埃莎的焊接设备,尤其以选择性波峰焊和回流焊设备为代表,已占据了行业内相当领先的市场份额。(埃莎选焊,ERSA选焊,选择性波峰焊,在线选波,进口在线选择性波峰焊)





埃莎选择性波峰焊4/55


Highlights Selective Soldering System VERSAFLOW 4/55

High end selective soldering system to integrate into in-line manufacturing concepts

Mini-wave soldering for high flexibility or multi-wave soldering (in preparation) for high volume applications

Product change without loss in production time with the multi-wave process (in preparation)

Processable area 20″ x 20″

Soldering module Y/Z variable

Versacam for height measurement on the fly

Versaflex soldering module X/Y/Z variable

Power convection for optimal homogenous preheats

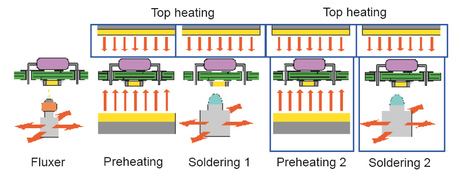

Parallel process through separation of fluxing, preheating and soldering cycle

Use of up to 4 flux spray heads

Fluxer y-variable

Flexible system configuration on account of modularity of the design

Ideal for linking to manual workstations or peripheral equipment

Secure process control with monitoring of all relevant processes

CAD-Assistant for offline programming

Link for traceability systems for process control



1579578085087.jpgVERSAFLOW 4/55

The worlds leading inline selective soldering system VERSAFLOW meets the highest demands in flexibility and throughput. With almost endless possibilities of configurations the system is ideal to meet any customer requirement.

The additional modules of the VERSAFLOW make it fit for future demands. The Ersa VERSAFLOW 4/55 ist the 4th generation of the leading inline selective soldering system and inspires with its new user interface and increased process flexibility











  • Length from 2,600 mm

  • Width approx. 1,700 mm

  • Height approx. 1,600 mm

  • Roller conveyor

  • PCB width: 63.5-508 mm

  • PCB length: 127-508 mm

  • Maximum PCB top side clearance: 120 mm

  • Maximumg PCB bottom side clearance: 30 mm

  • Maximum PCB weight: 5 kg (option 15 kg)

  • Nitrogen

  • Pneumatic system

  • Electric supply

  • Extracted air

Drop-Jet in different sizes

IR heating, convection or combination of IR and convection

  • Electromagnetic solder pot

  • Mini-wave 13 kg up to 6 pots


详细4.jpg             详细5.jpg


  • Roller-type conveyor for direct board handling

  • Programmable width adjustment

  • Precision Drop-Jet Fluxer, up to 2 X-Y modules and 4 spray heads per module

  • Maximum permissible board weight: 15 kg

  • 2 different flux media for each module

  • Up to 5 preheat modules

  • IR preheater individually configurable, convection on lower and upper side

  • Pyrometer to monitor temperature

  • Up to 3 solder modules with each 2 solder bath for mini-wave and mini-dip applications

  • Electromagnetic multi-dip-bath, modular construction (in preparation)

  • Tool-change on the fly for multi-dip tools (in preparation)

  • Controlled rest-oxygen value in multi-dip tool (in preparation)

  • Combination of multi-wave bath and mini-wave modules (in preparation)

  • Transfer of board data from the CAD system

  • ERSASOFT 5 incl. integration of MES (Manufacturing Execution System)
